偏光プリズム
グランレーザープリズム

グランレーザープリズムは、2個の方解石プリズムをエアスペースで組み上げたものです。グランテーラープリズムを改良したもので、プリズム接合部での反射損失が少なくなるように設計されています。

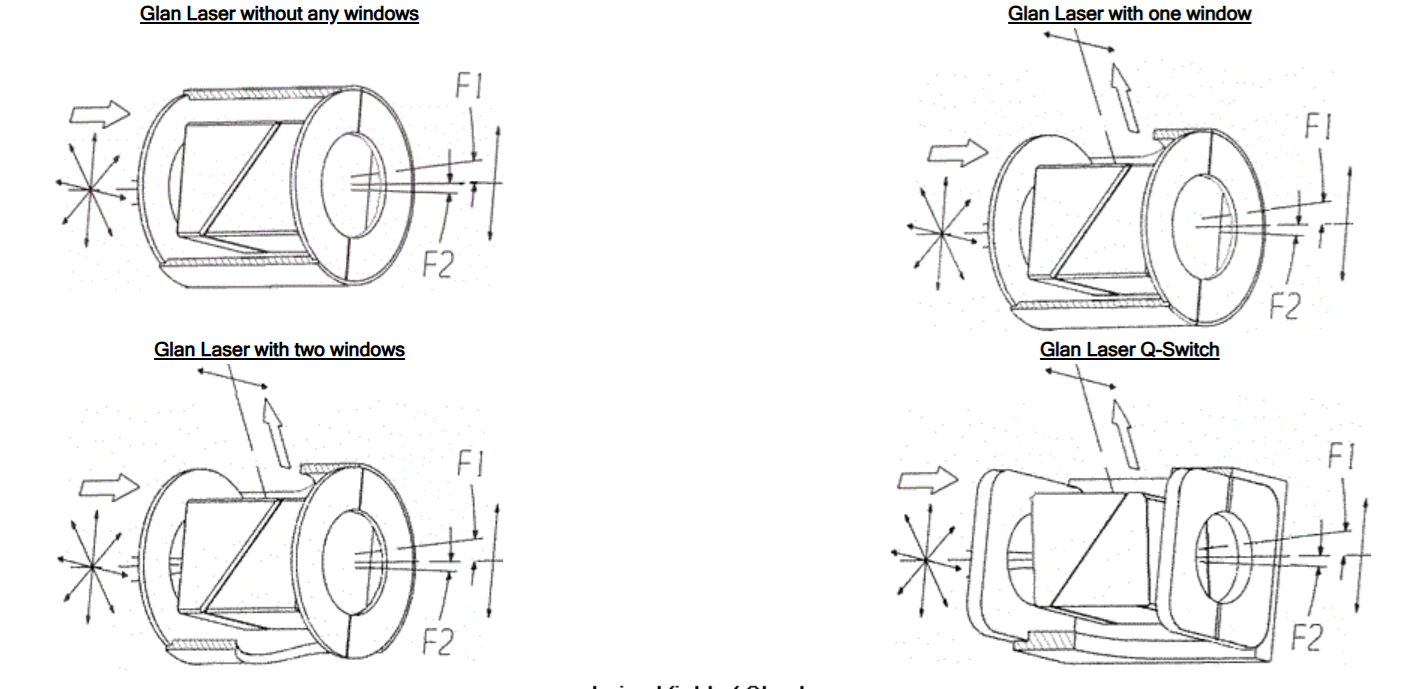

グランレーザープリズムには、エスケープウィンドウがないもの、1つあるもの、2つあるものがあります。エスケープウィンドウ無しは低エネルギーレーザー用です。エスケープウィンドウがあると、反射された通常のビームを外に逃がすことができ、高エネルギーレーザーに適しています。また正方形型マウントに取り付けられたQスイッチタイプもあります。

製品概要

特長

グランレーザープリズムの特長

広帯域（350 - 2300 nm）で使用可能

高い消光比（10-4 - 10-6)

高出力レーザー光に使用可能
（エスケープウィンドウありタイプ：　500 MW/cm2）

仕様

材質、消光比など

仕様詳細をご確認ください。

仕様詳細を見る
