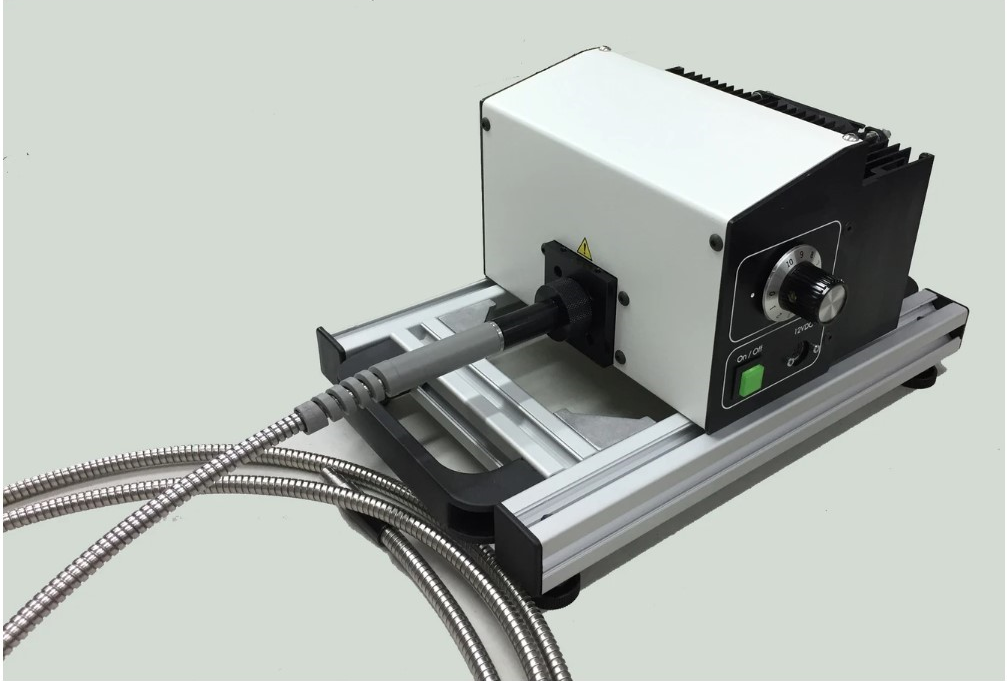

非破壊検査/蛍光浸透探傷検査用として従来の水銀ランプからの置き換え用として設計された高照度の365nmのUV-LED光源です。必要なすべてのドライバーと熱管理を備え、リキッドライトガイド出射にて最適化されています。UV光はフィルター処理されており、Rolls Royce RRES 90061規格に準拠しています。
Lyog5aSW6YOo44K144Kk44OI6KGo56S655So44GuQ1NT44GM44GT44GT44Gr5YWl44KK44G+44GZ44CCICovDQoJLmhvZ2Ugew0KDQoJfQ==
Lyog5aSW6YOo44K144Kk44OI6KGo56S655So44GuQ1NT44GM44GT44GT44Gr5YWl44KK44G+44GZ44CCICovDQoJLmhvZ2Ugew0KDQoJfQ==
製品概要
特長

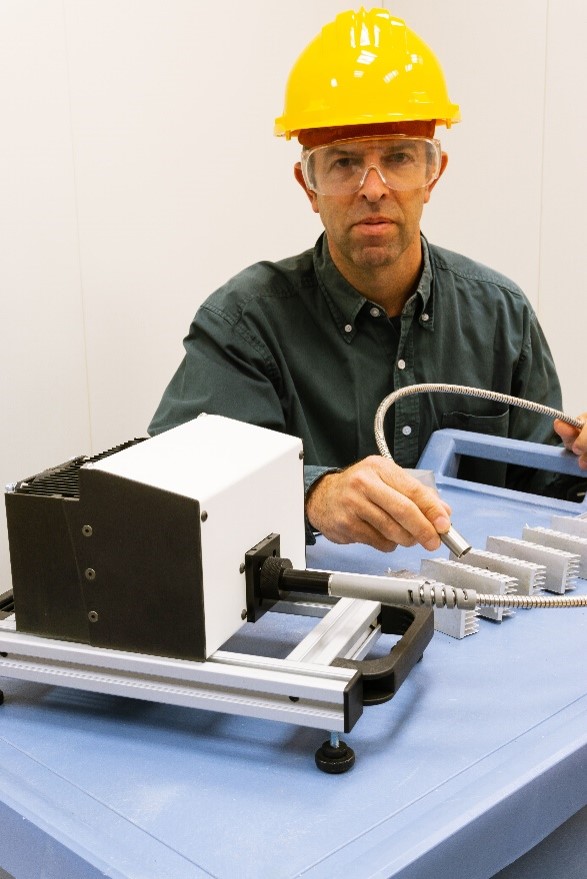

ウルトラハイパワー UV-LED光源
放射照度： 距離13インチで約5000uW/cm2

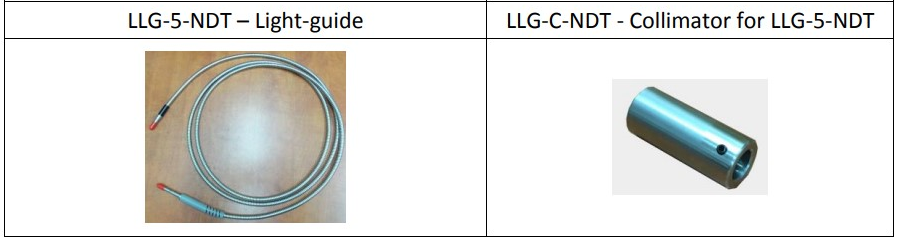

リキッドライトガイド端に専用のコリメータレンズを用いることで、特定の照射エリアに高照度でUV光を空間照射することが可能です。
Rolls Royce RRES 90061規格準拠
それぞれの規格に準拠した品質信頼性があります。
残留白色光< 20 lux (< 2 fc)
内部でフィルタリングされ、残留白色光を低減しています。

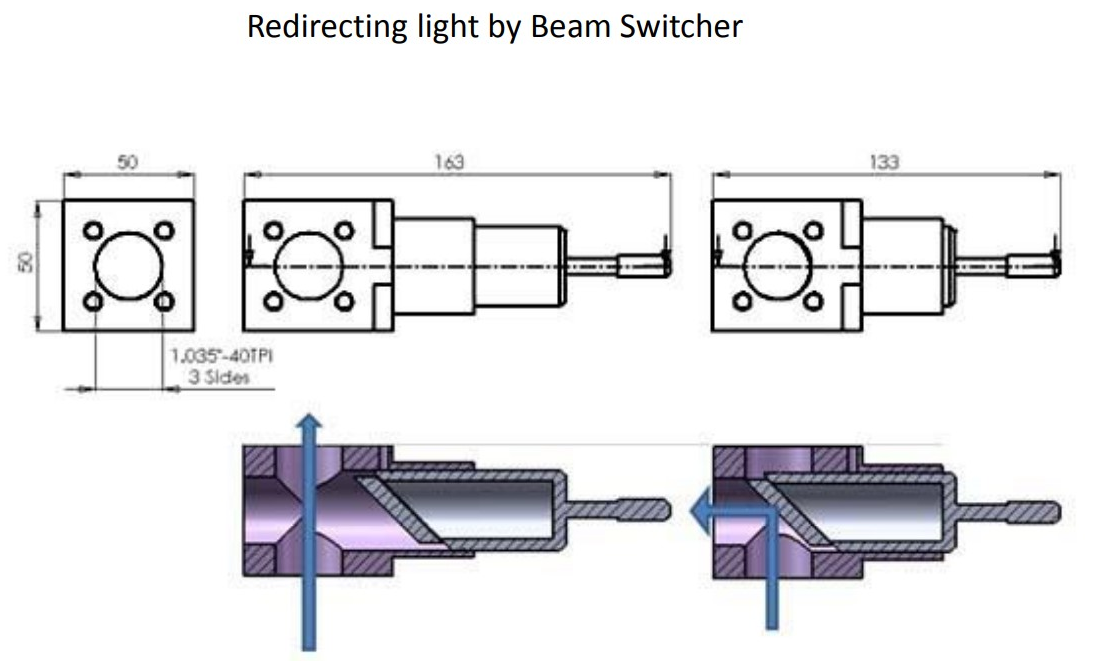

光路切替モデル
専用のビームスイッチャーで2本のリキッドライトガイドに分岐切替えできる仕様です。（型番：UHP-M-NDT-Dual）
Lyog5aSW6YOo44K144Kk44OI6KGo56S655So44GuQ1NT44GM44GT44GT44Gr5YWl44KK44G+44GZ44CCICovDQoJLmhvZ2Ugew0KDQoJfQ==
主な用途
非破壊検査/蛍光浸透探傷検査用です

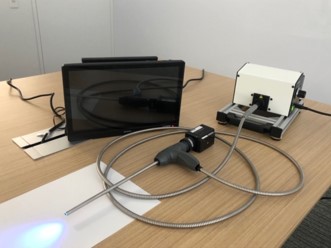

非破壊検査/蛍光浸透探傷検査用として

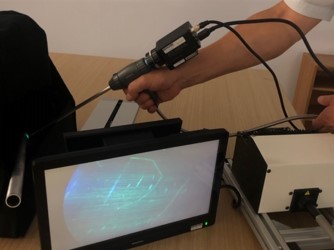

空間照射、ボアスコープとの接続などご用途に応じてご使用いただけます。

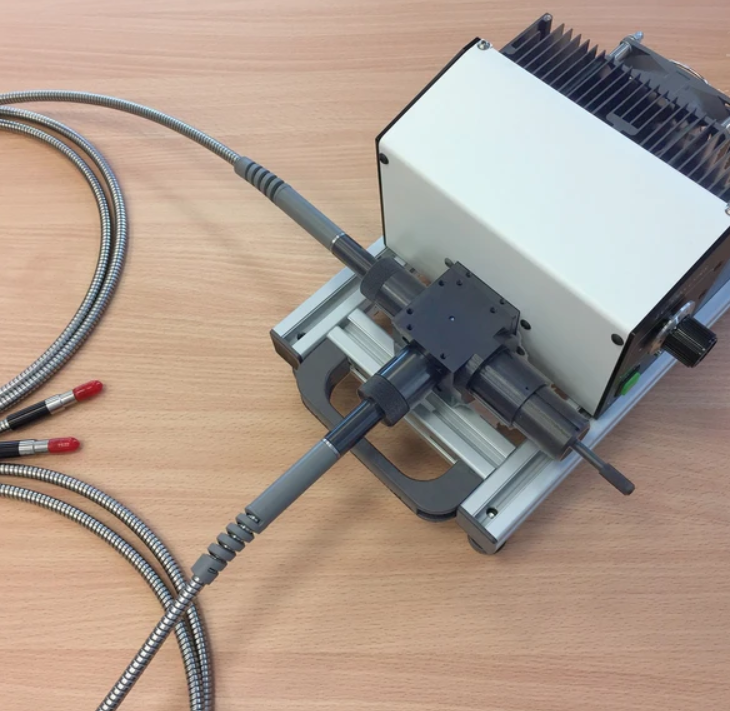

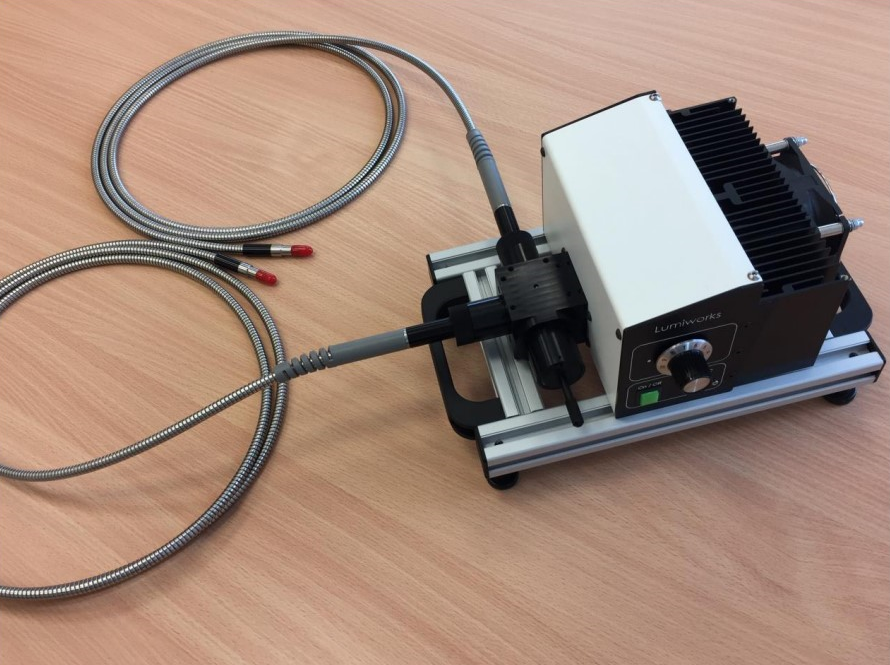

2分岐タイプ（UHP-M-NDT-Dual）
2分岐のビームスイッチャーを用いることで、ライトガイドを固定し、2か所の検査箇所を切り替えてUV照射することが可能です。
Lyog5aSW6YOo44K144Kk44OI6KGo56S655So44GuQ1NT44GM44GT44GT44Gr5YWl44KK44G+44GZ44CCICovDQoJLmhvZ2Ugew0KDQoJfQ==
動画
UHP-M-NDT
動作事例
Lyog5aSW6YOo44K144Kk44OI6KGo56S655So44GuQ1NT44GM44GT44GT44Gr5YWl44KK44G+44GZ44CCICovDQoJLmhvZ2Ugew0KDQoJfQ==
仕様
